EulerX 990 – Handheld Gold Analyzer EulerX 990

Availability: In Stock

The EulerX 990 handheld gold analyzer leverages cutting-edge ceramic packaged microfocus X-ray tube and state-of-the-art semiconductor detector technology

EulerX 990 Handheld Gold Analyzer—- Fast Ascertain the Purity of Your Precious Metals

Category:

Description

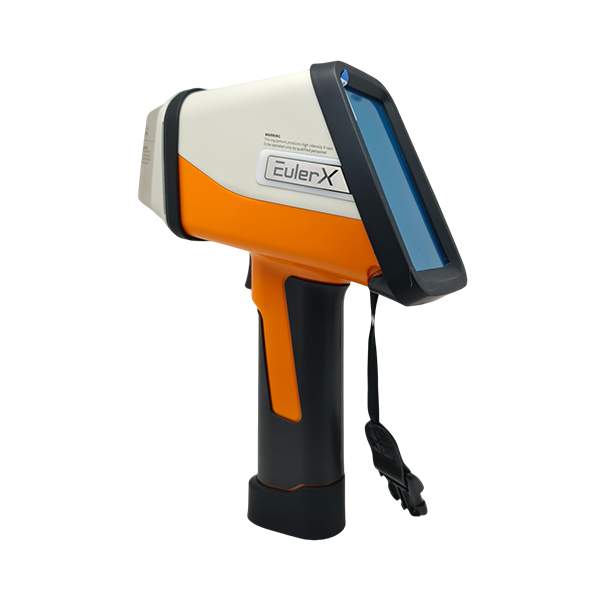

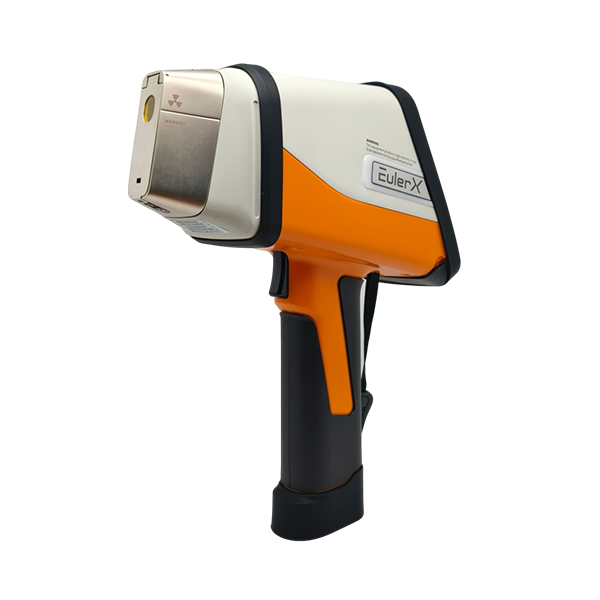

The EulerX 990 is a cutting-edge handheld gold analyzer equipped with a ceramic packaged microfocus X-ray tube and a high-performance semiconductor detector. Utilizing advanced software algorithms, it can perform quick, accurate, and non-destructive testing of gold, silver, platinum, and other precious metals in jewelry, enabling the rapid identification of their purity. This makes the EulerX 990 an essential tool for assessing the quality of jewelry, investment gold, and other precious metal commodities.

The EulerX 990 is Perfectly Suited for: Precious Metals Recycling: Offers precise analysis and identification of purity and concentration in recycled or recovered precious metals.

Jewelry Dealers and Makers: Aids in the procurement and identification of precious metal materials, authenticity verification, and purity analysis of gold and silver jewelry.

Pawnshops: Utilized for gold authenticity verification and purity testing of precious gold and silver jewelry as well as investment gold.

Quality Inspection Agencies: Employed in the determination of precious metals purity, including gold and silver.

Industrial Precious Metal Catalysts: Critical for the gold refining industry, monitoring gold concentration in activated carbon, and testing precious metals like platinum (Pt), rhodium (Rh), and palladium (Pb) in automobile three-way catalyst recovery. It is also used for analyzing recycled precious metal catalysts in the chemical industry.

Additional information

Weight 1.5 kg
Dimensions 220 × 91 × 276 cm
Excitation:

High performance Ag target tube,50kV

Detector:

High performance Si-Pin detector /Optimized SDD detector

Filter:

Smart multi position filter design

Window:

Kapton with anti-puncture window design optional

Collimator:

5mm collimator

Battery:

7.2V Li-ion battery,6800mAh

Display:

Capacitive touch color display

Data storage:

100000+data storage

Data transfer:

WiFi、USB

Radiation safety:

Safety guard device, tube shutoff while no sample , password-protected user security

Camera(optional):

Integrated CCD camera with autofocus lens for positioning and recording measuring point positions

Elements:

Ag, Pd, Rh, Ru, Au, Pt, Ir, Zn, Cu, Re, Ta, Hf, Ni, Co, Fe, Ti and more can be added if required

Environment Temp:

-10°C~50°C Humidity 0%~80%

Software language:

English and other languages
