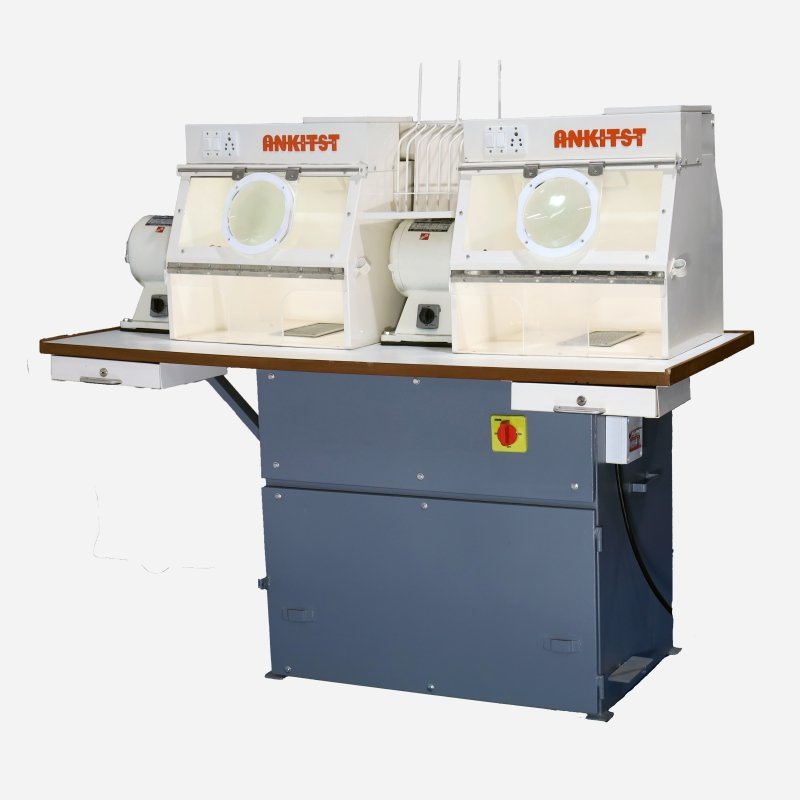

GS type Double Polishing is designed for professional jewelry manufacturing.
It operates at 220V with a current of 10A and a power of 2.2 kW.
The machine includes a 3 HP main motor and a 0.75 HP auxiliary motor for reliable performance.
It features a maximum flow rate of 500 L/min and a 3-stage filtration system for effective cleaning and polishing.
| Type | Pro |
|---|---|
| Supply | 3phase, 440volts, 50Hz, 3.5HP |
| Suction Motor | 2HP, 440V. |
| Polishing Motor unit | Single Shaft Spindle, 0.75HP, 2850 rpm 440V. |
| Working Flow Rate | 650 CFM x 2 Ports ±10% |
| Filtration | Retrieving data. Wait a few seconds and try to cut or copy again. |
| Static Pressure (max) | 8 Inch w.g |
| Hand Cushion | PU |
| Magnifying Glass | Yes |
| Silencer | Yes |
| Noise Level (max) | 72 dB (A) |
| Weight | 150Kg |
| Dimensions | W-132.08 ½” D-71.12” H-136.7” |
