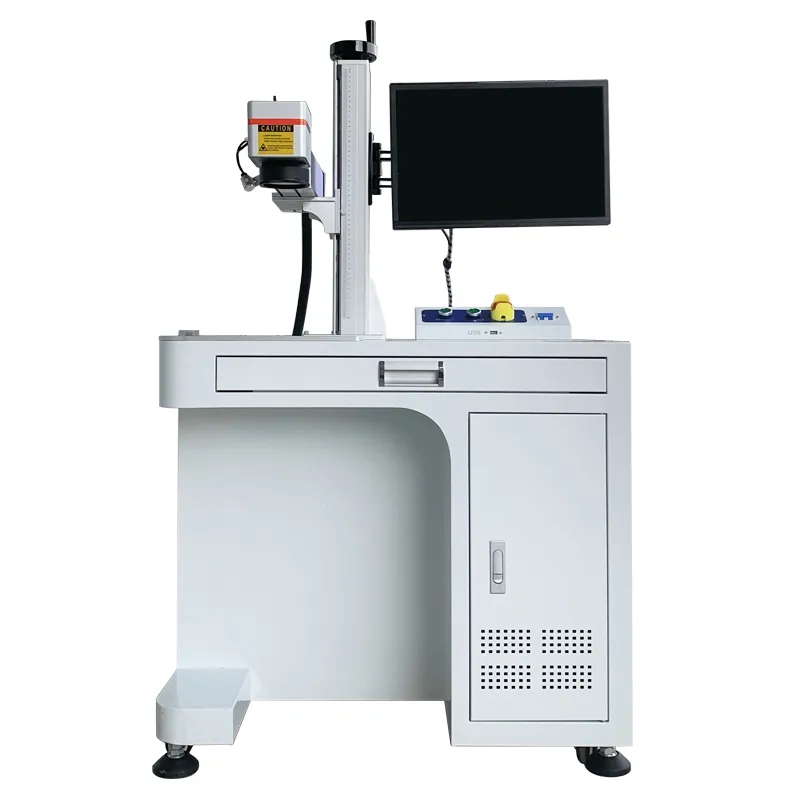

The fiber laser marking machine will make the ideal addition to any manufacturing process. It provides more durability and accuracy than similar equipment while being quick with limited maintenance. This cost-effective, versatile option is a great investment for industrial processes including gold and silver engraving and thin metal cutting.
The laser engraver employs the world-famous solid-state fiber laser that is ideal for applications with tight tolerances and offers incredibly smooth, precise results.
The laser marking machine is the ultimate choice for those looking to improve efficiency. It can be used for various purposes, including deep engravings and lettering without damaging the product.
| Machine model | 20 Watt 30 Watt 50 Watt 100 Watt |
|---|---|
| Wave length of laser | 1064nm |
| Laser repetition frequency | 20kHz~100kHz |
| Laser power | 20W 30W 50W 100W |
| Marking scope | 110*110mm |
| Laser sources | Raycus/Max/JPT |
| Laser Head | Sino-Galvo Scanning Head |
| The minimum focus facula diameter | 20μm |
| Minimal character | 0.01mm |
| Marking speed | 7000mm/s |
| Repeated accuracy | 0.0025mm |
| Cooling ways | Air Cooling |
| Power supply | 110V/220V/, 50/60Hz |
| Process Material | Gold, Silver |
| Support format | PLT, BMP, DXF, JPG, TIF, AI etc |
